পণ্যের বিবরণ:
|
| কম্পাংক সীমা: | 64 Hz ~ 5 MHz (নিয়ন্ত্রণযোগ্য) | Gain range: | 0~90 dB, adjustable in step of 0.5 dB |
|---|---|---|---|
| ফেজ ঘূর্ণন: | 0~360, 1 এর ধাপে সামঞ্জস্যযোগ্য | যোগাযোগ: | ইউএসবি |
| লক্ষণীয় করা: | Eddy Current Flaw Detector,Portable Current Flaw Detector,HEF-301 Current Flaw Detector |
||

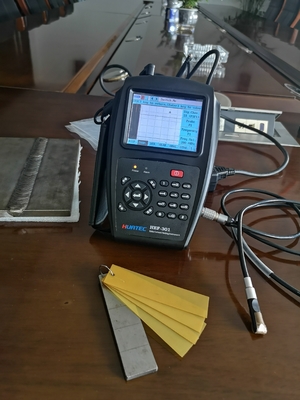

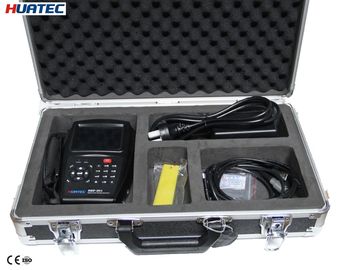

Portable Eddy Current Flaw Detector HEF-301
HEF-301 has high sensitivity for discontinuities of metal materials, such as cracks on copper pipe
surface, puckers and scars of steel pipe, pits, scratches, wear scars, transverse fissures or
separation layers etc.
| Frequency range | 64 Hz~5 MHz (adjustable) |
| Gain range | 0~90 dB, adjustable in step of 0.5 dB |
| Phase rotation | 0~360 , adjustable in step of 1 |
| Communication | USB |
| Optional | Optional in absolute probe, differential probe and self- comparing probe |
| Boundary dimension | 183x120x44 (mm) |
| Weight | 600g |
| Gross weight | 4kgs |
