পণ্যের বিবরণ:
|
| Sound Velocity Range: | 1000~9999 M/s | ইউনিট: | মেট্রিক/ইম্পেরিয়াল ইউনিট সিলেক্টাব |
|---|---|---|---|
| Resolution: | 0.1mm | Accuracy: | ±(0.5%Thickness+0.04)mm, Depends On Materials And Condition |
| Measuring Range: | 0.75～300mm (in Steel) | Display: | 4.5 Digits LCD With EL Backlight |
| লক্ষণীয় করা: | Ceramics Ultrasonic Thickness Gauge TG3000,Metals Ultrasonic Thickness Gauge TG3000,Plastic Ultrasonic Thickness Gauge TG3000 |
||

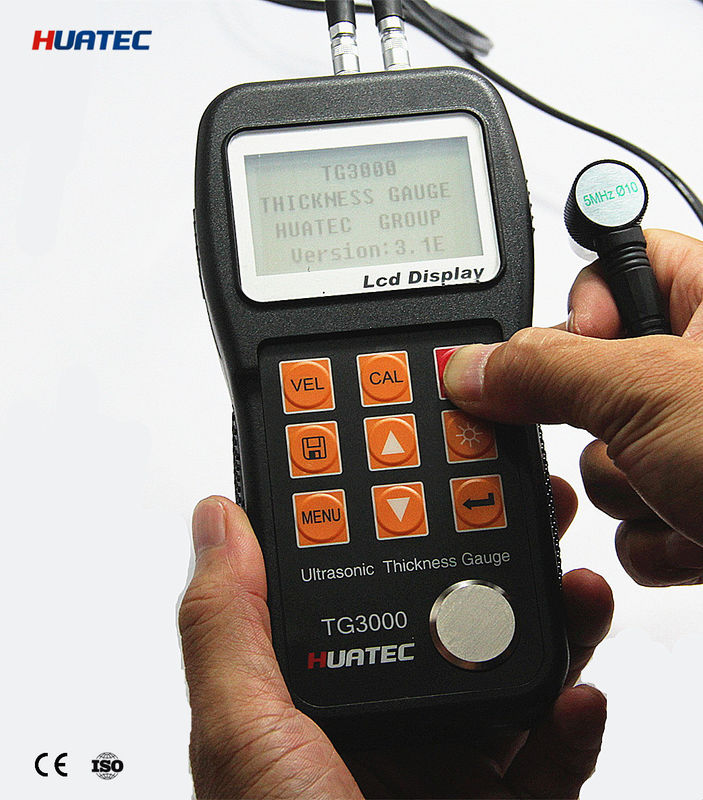

1.Capable of performing measurements on a wide range of material, including metals, plastic, ceramics, composites, epoxies, glass and other ultrasonic wave well-conductive materials.
2.Transducer models are available for special application, including for coarse grain material and high temperature applications.
3.Two-Point Calibration function.
4.Two work modes: Single point mode and Scan mode.
5.Coupling status indicator showing the coupling status.
6.Auto sleep and auto power off function to conserve battery li
| Parameter | Description |
|---|---|
| Accuracy | ±(0.5%Thickness+0.04)mm, Depends On Materials And Conditions |
| Display | 4.5 Digits LCD With EL Backlight |
| Resolution | 0.1mm |
| Units | Metric/Imperial Unit Selectable |
| Measuring Range | 0.75～300mm (in Steel) |
| Sound Velocity Range | 1000~9999 M/s |
Specifications
1.Display: 4.5 digits LCD with EL backlight.
2.Measuring Range:0.75～300mm (in Steel).
3.Sound Velocity Range: 1000~9999 m/s.
4.Resolution: 0.1mm.
5.Accuracy: ±(0.5%Thickness+0.04)mm, depends on materials and conditions
6.Units:Metric/Imperial unit selectable.
7.Four measurements readings per second for single point measurement, and ten per second for Scan Mode.
8.Memory for up to 20 files (up to 99 values for each file) of stored values.
9.Power Source:Two “AA” size, 1.5 Volt alkaline batteries. 100 hours typical operating time (EL backlight off).
10.Outline dimensions:150×74×32 mm. Weight
