পণ্যের বিবরণ:
|
| UV বিকিরণ: | 2500uW/cm2 (5cm দূরত্ব) | ক্যামেরা রেজোলিউশন: | 2048*1536, সর্বোচ্চ রেজোলিউশন 3264*2448 |
|---|---|---|---|
| ক্যামেরা: | 800W | তারের দৈর্ঘ্য: | 2 মিটার, 15 মিটারে কাস্টমাইজ করা যেতে পারে |
| ওয়াটার প্রুফ টাইপ: | IP65 | ||
| বিশেষভাবে তুলে ধরা: | oil drilling pipe UV endoscope,UV detection light for pipes,non-destructive testing endoscope with UV |
||

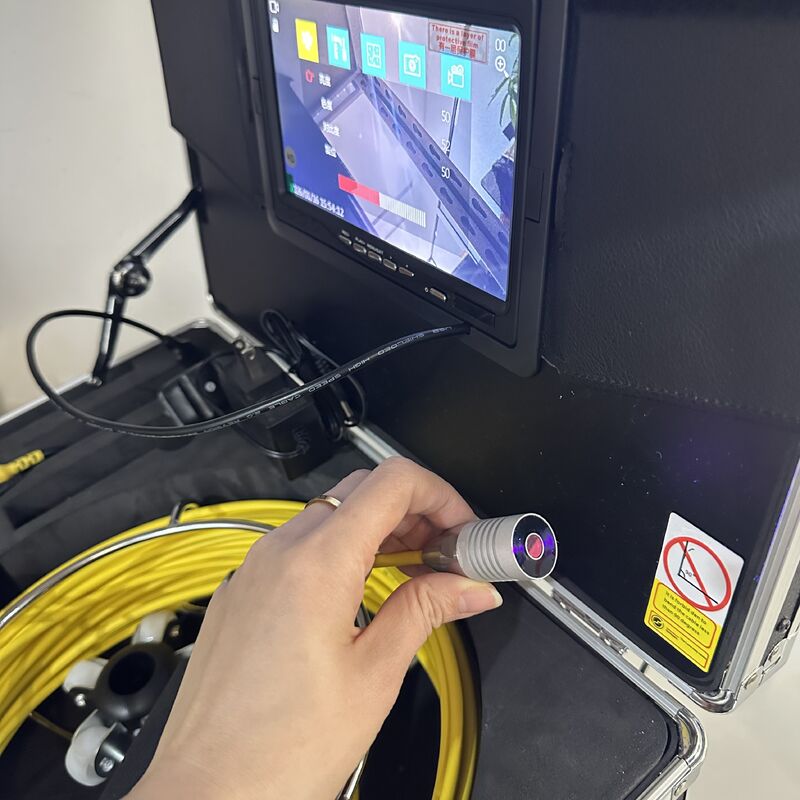

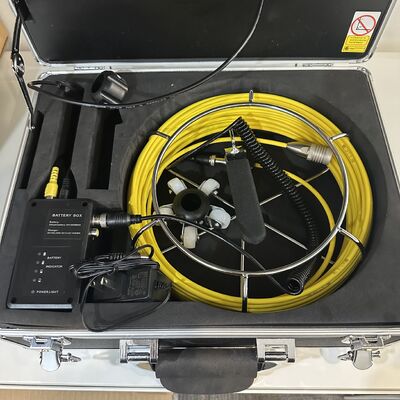

DG-800 Oil Drilling Pipe UV Ultraviolet Detection light Endoscope
Application:
Used for oil drilling pipe, is by natural gas pipeline and other linear pipeline ultraviolet detection, heat exchanger tube internal inspection with recording.
Specifications:
| Camera |
800W |
| UV irradiance | 2500uW/cm2 (5cm distance) |
| Focus | automatically |
| White light |
included |
| Probe size |
25*21mm |
| Water proof type |
IP65 |
| Interface |
USB2.0 Can connect with pc through software, to store data into computer |
| Camera resolution |
2048*1536, maximum resolution 3264*2448 |
| Working direction |
The side view and front view are all possible, can move 360deg inside |
| UV camera type |
articulated, camera is fixed in one direction and rotate it to view all four walls of tube |
| Cable length |
2 meters, can be customized to 15meters |
| Weight |
215g |
![]()
