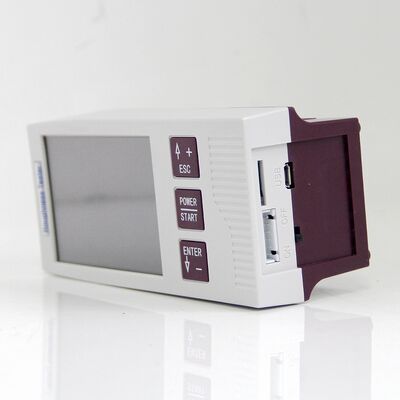

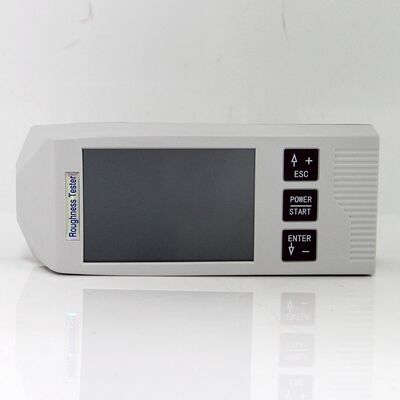

Color Graphics LCD Display 22 Parameters TFT Touch Screen Surface Roughness Tester

Color graphics LCD display 22 parameters TFT Touch Screen Surface Roughness Tester

Main Features

5. Mechatronic and ergonomics design, small size, light weight, easy to operation
5. The stylus drive unit can be stored within the main unit for standard measurement, or separated from the display unit by using the supplied cable which allows more flexible measurement in any orientation. The driver can be separated and reattached in one simple step.
5. DSP chip control and data processing, high speed, low power consumption
5. 22 Parameters: Ra ,Rz, Rq, Rt, Rp ,Rv, R3z, R3y, Rz(JIS), Rs, Rsk, Rsm, Rku, Rmr, Ry(JIS), Rmax,RPc, Rk, Rpk, Rvk, Mr1, Mr2
6. Measurement range up to 160μm (can be optional to 320μm)
5. 3.5 inches color graphic TFT touch screen, wide viewing angle, excellent readability and an intuitive rich display, it includes a backlight to improve visibility in dark environments
5. Can be operated using buttons or touch screen
5. It provide Blue tooth Capability , support wireless connection with mobile and mini printer.
5. Built-in lithium-ion rechargeable battery and control circuit, high capacity, no memory effect, it works over 50 hours while fully charged, and there is remaining charge indicator, charging hint
5. Large capacity data storage, 100 item of raw data and curves can be stored
5. Real-time clock setting and display for easy data recording and storage
5. With auto sleep, auto power off, power-saving features
5. Reliable circuit and software design to preventing the motor stuck
5. Language: Chinese and English switch freely
5. All parameters or any of the parameters which set by users can be printed
5. Optional accessories: Blue tooth capability, curved sensor, pinholes sensors, measurement, stand, extension rod, printer
5. Portable Surface Roughness Tester SRT6680 complies with international standards ISO, DIN, ANSI, JIS

Technical parameters

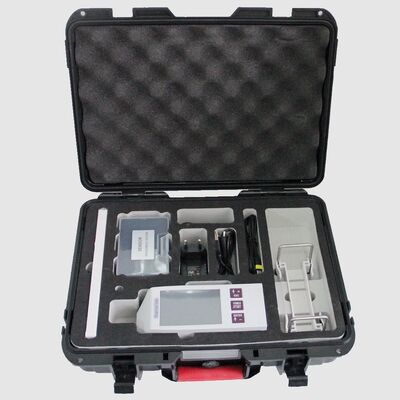

Standard Delivery
