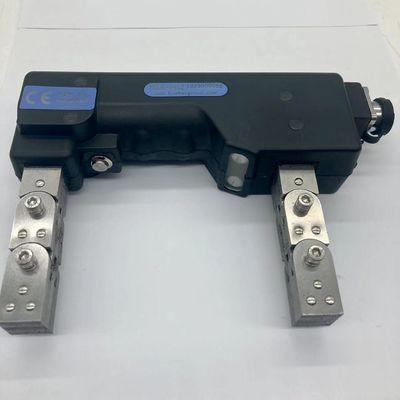

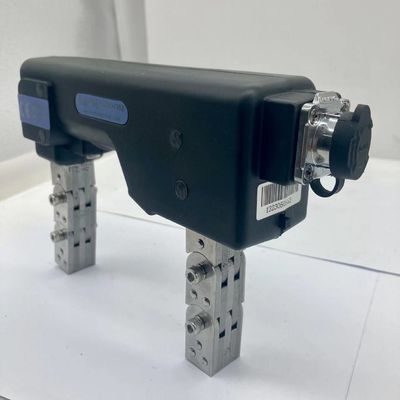

HCDX-Y45 Series Portable AC DC Magnetic Yoke with UV & White Light for Magnetic Particle Testing

HCDX-Y45 Series Portable AC DC Magnetic Yoke with UV & White Light for Magnetic Particle Testing

Uv lamp intensity: ≥5000uw/cm²

White lamp intensity: ≥1450Lux

HCDX-Y45 Portable AC Magnetic Yoke Flaw Detector with White Light

HCDX-Y45DC Portable AC&DC fluorescent magnetic yoke Flaw detector with White light and UV light

HCDX-Y45Z Portable AC fluorescent magnetic Yoke Flaw detector with White light and UV light

1. Product introduction

• The probe can choose two lighting modes: ultraviolet lamp and white lamp.

• The probe weight is only 2.0kg, suitable for long time magnetic particle detection work.

• Working mode: AC and DC (for model HCDX-Y45DC)

• AC operation: The probe is connected to AC220V power supply for flaw detection.

• DC operation: The probe can be connected to the battery for DC operation.

2. Technical parameters

3. Configuration

HCDX-Y45 configuration

• Host with type D yoke probe 1 unit

• White lamp 1 pc

• AC power cable 1 pc

• Instruction manual 1 pc

• Calibration certificate 1 pc

• Instrument case 1 pc

HCDX-Y45DC configuration

• Host with type D yoke probe 1 unit

• White lamp 1 pc

• UV lamp 1 pc

• AC power cable 1 pc

• Power adapter 1 pc

• Lead acid battery 1 pc

• DC power cable 1 pc

• Battery pack 1pc

• Instruction manual 1 pc

• Calibration certificate 1 pc

• Instrument case 1 pc

HCDX-Y45Z configuration

• Host with type D yoke probe 1 unit

• White lamp 1 pc

• UV lamp 1 pc

• AC power cable 1 pc

• Instruction manual 1 pc

• Calibration certificate 1 pc

• Instrument case 1 pc
