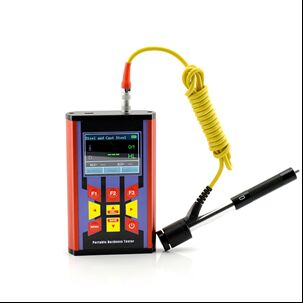

RHL-70S Portable Metal Case Leeb Hardness Tester Multi Hardness Conversion
This Leeb hardness tester is an innovative design testing instrument based on Leeb hardness principle, on the existing data table, the following materials are added more scales.
-- CWT, ST material add HRA, HB . for D impact device
-- C. ALUM material add HV. for D impact device
-- C. ALUM material add HV. for C impact device
TECHNICAL DATA
|
Measuring Range
|
HLD(170~960), HRC(17.9~69.5), HB(19~683), HV(80~1042), HS(30.6~102.6), HRA(59.1~88),
HRB(13.5~101.7)
|
|
Measuring Direction
|
360°
|
|
Hardness Scale
|
HL, HB, HRB, HRC, HRA, HV, HS
|
|
Measuring Materials
|
Steel and cast steel, alloy tool steel, stainless steel, gray cast iron, nodular cast iron, cast aluminum alloy, copper zinc alloys (brass), copper and tin alloy, copper (bronze), forged steel.
cast steel rolls, forged rolls, cast iron rolls
|
|
Display
|
320x240 true color TFT screen
|
|
Indication Error
|
±6HLD (D impact device)
|
|
Data Memory
|
Max 600 groups (relative to impact times 1~32 adjustable)
|
|
Power supply
|
Rechargeable li-battery, 3.7v
|
|
charger
|
5V/1000mA, charging time 2.5～4.5
|
|
Communication port
|
USB
|
|
Size
|
130x83x32mm
|
|
Weight
|
0.6kg
|
|
Working Condition
|
working temperature: -20°C~55°C
storage temperature: -20°C~75°C
relative humidity: ≤90％
|
MMAIN FEATURE
Ø Specified for metal roll hardness testing
Ø Allow 5 kind user defined material, which realize special material measurement.
Ø Standard accord with standard JB/T 9378-2001. ASTM A956
Ø DISPLAY shows 2 scales : the hardness scale of Leeb and the other scale that you selected.

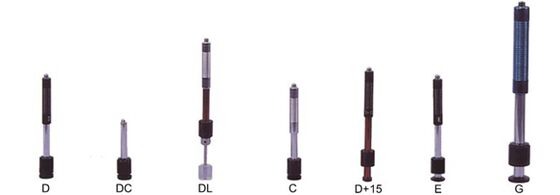

Ø Seven impact devices are available for special application; Support plug and play. it can automatically identify impact device and can set by manual as well. No need calibration when probe changes.
Ø Ten commonly used material of hardness scale(HL, HB, HRB, HRC, HRA, HV, HS) parallel conversion.
Ø Built in lithium ion battery; up to 50 hours continuous work; with auto sleep, auto power off, power-saving features.
Ø Adopt 320X240 true color large display, the Brightness LCD is adjustable, allow visibility in dark environments.
Ø Windows menu. Support 6 language freely switch. User friendly features, easy to operate.
Ø Material of 'steel' is added; HB values can be read out directly when D/DC impact device is used to measure “steel” work piece.
Ø USB port. Convenient communication with PC to exchange data and set parameter.
Ø Large memory up to 600 group hardness data( impact times:32～1), it include: the last testing value, average value, testing date, impact direction impact times, material, hardness scale, etc
Ø it can automatically alarm when values are out of pre-set range, which is convenient for the requirements of batch measurements.
Ø Metal case, anti-electromagnetic interference, shock resistant.
Ø There are remaining charge indicator, charging hint.
Ø Features calibration function.
Ø Software of PC can be installed according to the requirements of user, the function will be more powerful to satisfy the more strict demands of quality control and management.
STANDARD DELIVERY
|
ITEM
|
QTY
|
|
Main unit
|
1 PC
|
|
Standard D Impact Device
|
1 PC
|
|
Standard Calibration Block
|
1 PC
|
|
Standard Support Ring
|
1 PC
|
|
Brush
|
1 PC
|
|
USB Cable, charger
|
1 PC
|
|
PC Software
|
1 PC
|
|
User Manual
|
1 PC
|
|
Instrument Case
|
1 PC
|
|
Warranty
|
2 Years
|
Main application
-- The installed machinery and permanently assembled parts
-- Die cavity of molds
-- Heavy work piece
-- Failure analysis of pressure of steam generator and other parts.
-- for work piece in confined spaces
-- Bearing and other parts.
-- for usage when original hardness testing data report are request
-- for metal material distinction in warehouse
-- for quick inspection of multiple measuring area in wide range of large work piece.
