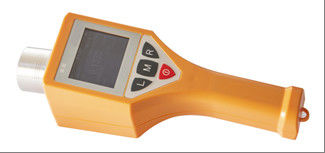

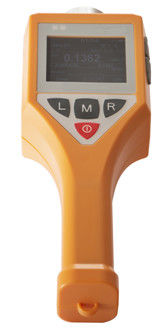

FJ32-3602 Multi-Function Waterproof Radiation Dosimeter for Environmental & Nuclear Monitoring
FJ32-3602 is an all-in-one digital multi-function radiation survey instrument, which can meet 10 range levels. It can precisely measure X, gamma and neutron rays, and carry out energy spectrum analysis of gamma rays. At the same time, it is waterproof and dustproof and can work in bad environment. IDefender has a wide range of USES, such as environmental monitoring, nuclear safety, radiation health surveillance (CDC), nuclear medicine, homeland security monitoring () the entry and exit, customs, public security monitoring (public security), nuclear power plant, laboratory, and nuclear technology application situation, at the same time can also be applied to renewable resources industry scrap metal of radioactive detection.
| Multicomponent optional radiation detector |
High strength ABS electromagnetic interference resistant waterproof housing |
| 2.4-inch 320*240TFT color liquid crystal display |
Multilayer digital analysis gold-plated circuit |
| High speed dual core processor |
4G high-capacity memory card |
| USB connects the host data cable |
Color backlight processor |
| Data analysis CD (optional) |
Large capacity lithium battery |
| High speed fast charger |
High strength ABS waterproof packing case |
Typical configuration technical parameters:
Main detector (3602 detector) : scintillator detector +PMT; Sub-detector: GM tube
Detector size: NaI (TI) 1.2"×1.2";
Sensitivity: ≥400cps/ musv /h (cs-137)
Energy response: 20KeV~3.0MeV
Main detector dose rate range: 1nSv/h~ 600mu Sv/h;
Sub-detector dose rate range: 0.1um Sv/h~150mSv/h;
Cumulative dose range: 1nSv~999999mSv
Relative inherent error: ≤10%
Repeatability: less than or equal to ±5%
Detection frequency: continuously adjustable from 1 second
Alarm threshold: continuously adjustable from 0.25 ms /h
Alarm mode: sound, light, vibration
Battery life: 12 hours
Temperature range: -40℃~+55℃
Humidity range: 0~95% no condensation
Charger: 5V~1A
Size: 235 * 95 * 77 mm
Weight: 1200 g
