HUATEC HG-5026 Battery Powered Vibration Calibrator

HG-5026 Battery Powered Vibration Calibrator

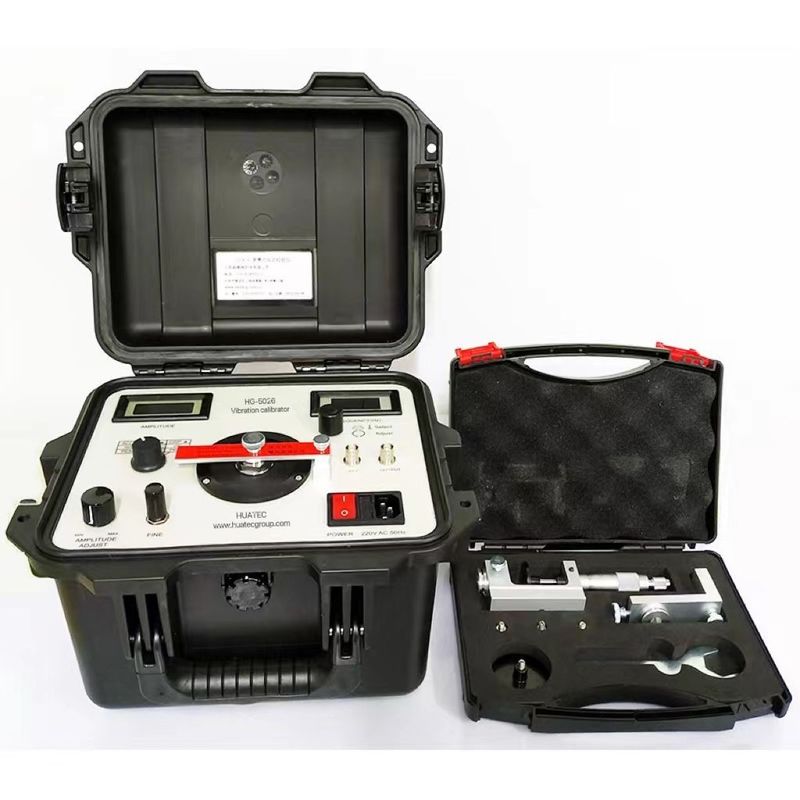

HG-5026 battery powered vibration calibrator can be used to calibrate vibration accelerometer, velocity and proximity transducer and also a vibration measuring instrument. Standard sine signal vibration at any frequency from 1 to 1280 Hz can be defined in the calibrator. The amplitude of the acceleration, velocity and displacement, can be defined through potentiometers and shown on digital displays. Either horizontal or vertical vibration can be generated. HG-5026 combines sine signal generator, power amplifier, standard transducer, vibration meter and a shaker in one and features a small volume, high accuracy and easy operation. It can be used either in laboratory or on site.

Maximum vibration amplitude & transducer weight

Note: When the frequency is high, due to the very small value of the vibration displacement, the calibrator does not display the amplitude of the vibration signal at these points.

Battery introduction:

• It charges automatically when connected to an AC power supply (with built-in battery overcharge protection, it takes approximately 8 hours to charge from empty to full).
• A new battery can be used for more than 8 hours when fully charged (the specific time is related to the vibration intensity).
• The battery has low power life protection, over-temperature protection and short-circuit safety protection

Specifications

Frequency: from 1 to 1280 Hz ≤±0.01%

Amplitude accuracy:

• Amplitude accuracy:

    Acceleration (@10m/s² pk)             40Hz to 320Hz + 0.3dB + 1digit

                                                     20Hz to 640Hz + 0.5dB +1digit

  Velocity (@20mm/sec rms)      40Hz to 320Hz +0.5dB +1digit

  Displacement (@50μm pk-pk)      40Hz to 320Hz + 0.5dB + 1digit

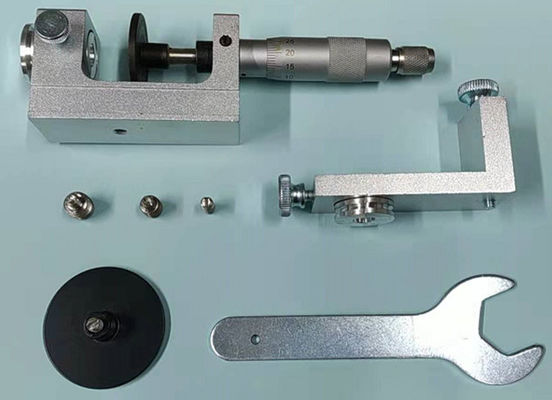

  Proximity probe linearity calibration kits

  Probe:  5mm,8mm and 11mm probes  Range:  0~4.0mm

  Weight of velocity probe: ＜650g

  Display:  3 ¹/₂ digit display for vibration and frequency

  Size: 300 x250 x210(mm)                            Net Weight:  6 kg

  Temperature: Operation:  0^oC to 50 ^oC          Storage:  -20 ^oC to 70 ^oC

  Power:  220Vac (optional 110Vac)
