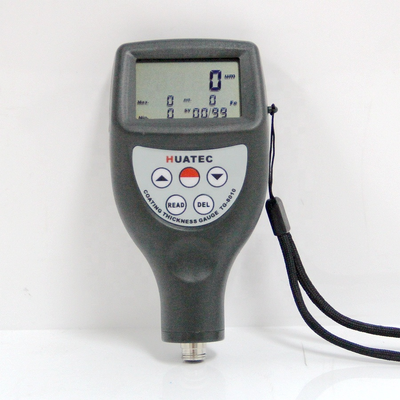

TG-8010 High Precision Coating Thickness Gauge Backlight LCD Single Continuous Measurement μm/mil Conversion Powder Enamel Plating Thickness Detector

TG-8010 High Precision Coating Thickness Gauge Backlight LCD Single Continuous Measurement μm/mil Conversion Powder Enamel Plating Thickness Detector

1.FEATURES
* It meets the standards of both ISO2178 and ISO 2361 as well as DIN, ASTM and BS. It can be used both in the laboratory and in harsh field conditions.
* The F probes measure the thickness of non-magnetic materials (e.g. paint, plastic, porcelain enamel,copper, zinc, aluminum , chrome etc.) on magnetic materials (e.g. iron, nickel etc.) . often used to measure the thickness of galvanizing layer, lacquer layer, porcelain enamel layer, phosphide layer,copper tile, aluminum tile, some alloy tile, paper etc.
* The N probes measure the thickness of n o n - m a g n e t i c c o a t i n g s o n n o n -m a g n e t i c m e t a l s . I t i s u s e d o n anodizing, varnish, paint, enamel, plastic coatings, powder,etc. applied to aluminum, brass, non-magnetic stainless steel, etc.

* Automatic substrate recognition.
* Manual or automatic shut down.
* Two measurement mode: Single and Continuous
* Wide measuring range and high resolution.
* Metric/Imperial conversion.
* Digital backlit display gives exact reading with no guessing or errors.
* Can communicate with PC computer for statistics and printing by the optional cable.
* Can store 99 groups of measurements.
* Statistics is available.

TECHNICAL DATA

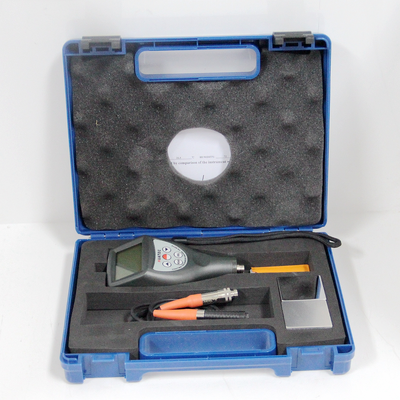

Standard accessories:
Carrying case ...................1 pc.
Operation manual ............ 1 pc.
F probe in built .................1 pc.
NF probe in built...............1 pc.
Calibration foils ..............1set.
Substrate (Iron) ................1 pc.
Substrate (Aluminium)......1 pc.

Optional accessories:
RS-232C cable & software:
1.USB adaptor for RS-232C
2.Bluetooth interface
