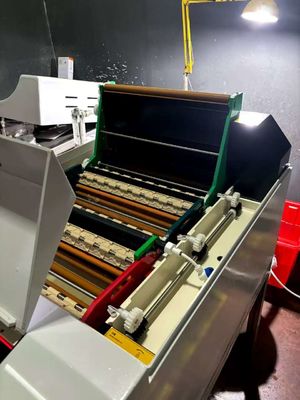

HDL-430D Industrial Tabletop Radiographic Film Processor Multi Protection System NDT X-ray Film Developing Rinsing Drying Equipment

Specification

Film Size: Minimum: 50×100mm, Max. Width: 450mm

Film Type: roll orflat film

Film probes: 4 sets of micro inductive probes

Processing Time: 3.2～16min. (0.1min. adjustable)

Feed-in Speed:155～765 mm/min.

Processing Capacity: 350×430mm 22-109 sheets/hr,80×300mm 110-545 sheets/hr (when 5.4 min processing time)

Tank Volume: Dev. Fix. Wash.13L for each

Supplementary: automatically replenish water according to film size,waterreplenishment 50～700ml/㎡

Dev. Temp.: 20～40℃ (0.1℃ adjustable)

Fix. Temp.:automatically adjustable

Dry Temp.: 20～70℃ (5℃ adjustable)

Water Temp.: 5～30℃

Washing Controlling: when working: automatic water intake less than2L/min, standby: automatic shutdown

Power Consumption:110～240V 10A, 50 or 60Hz

Weight: G.W: 128kg, N.W: 88kg

Dimension: appr.: 108×71.5×113cm³
