পণ্যের বিবরণ:
|
| পরিমাপ পরিসীমা: | 0~200 um / 0~8 মিলিয়ন | রেজোলিউশন: | 0.1 উম |
|---|---|---|---|
| Min. মিন. Radius Workpiece ব্যাসার্ধ ওয়ার্কপিস: | উত্তল 2 মিমি / অবতল 4 মিমি | Min. মিন. Measuring Area পরিমাপ এলাকা: | 2 মিমি |
| Min. মিন. sample thickness নমুনা বেধ: | 0.1 মিমি | নির্ভুলতা: | ± 1~3%n বা ± 2.5 um |
| অপারেটিং শর্ত: | টেম্প 0~40 °C, আর্দ্রতা: 10~90% RH | ||
| বিশেষভাবে তুলে ধরা: | magnetic induction coating thickness meter,micro coating thickness meter for curved workpieces,thickness meter for tiny workpieces 0-200μm |
||

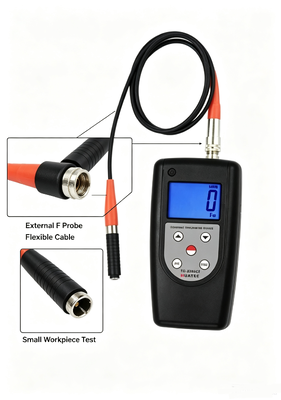

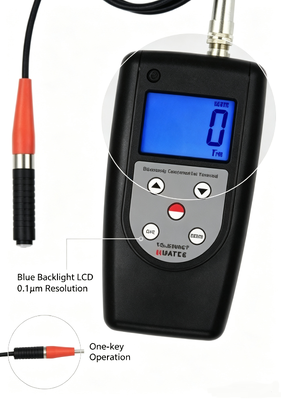

TG‑2200CF Magnetic Induction Micro Coating Thickness Meter for Curved and Tiny Workpieces 0‑200μm Applications : The F probes measure the thickness of non-magnetic materials (e.g. paint, plastic, porcelain enamel, copper, zinc, aluminium, chrome etc.) on magnetic materials (e.g. iron, nickle etc.) . often used to measure the thickness of galvanizing layer, lacquer layer, porcelain enamel layer, phosphide layer, copper tile, aluminium tile, some alloy tile, paper etc.
